IoT Intelligent gateway Type G200

IoT Intelligent gateway G200 is a portable indoor gateway and complies with LoRaWAN protocol to provide low power, stable and secure wireless connectivity for devices and sensors.

IoT Intelligent gateway G200 adopts star topology deployment and provide WiFi, 4G or Ethernet connection to network server. The solution is used in a wide area of applications such as smart energy, smart cities and agricultural IoT.

IoT Intelligent gateway G200 meets the network requirements of long-range communications, strong anti-interference ability, high sensitivity and low power for many dispersed nodes to provide a low cost and high reliability indoor IoT solution.

Functions and Features

1. Large node capacity: a single gateway can support up to 100000 node accesses.

2. Multi-gateway network standby multiple: when there is gateway exception in the gateway network. Nodes can access the network through neighboring gateways to ensure stability.

3. Node roaming: legal nodes can move freely within the coverage of the gateway.

4. Support full duplex uplink and downlink: up to 16 uplink access channels and 2 downlink transmission channels.

5. Wide coverage radius: it can achieve wide coverage of 5 km in the city and 15 km in the suburbs.

6. POE power supply: support standard Ethernet port power supply and DC12V dual power supply.

7. Power failure alarm: supports power failure alarm function.

8. Wifi-based configuration management: It provides a convenient and reliable low-cost operation way for the management and maintenance of the base station system.

Port Introduction

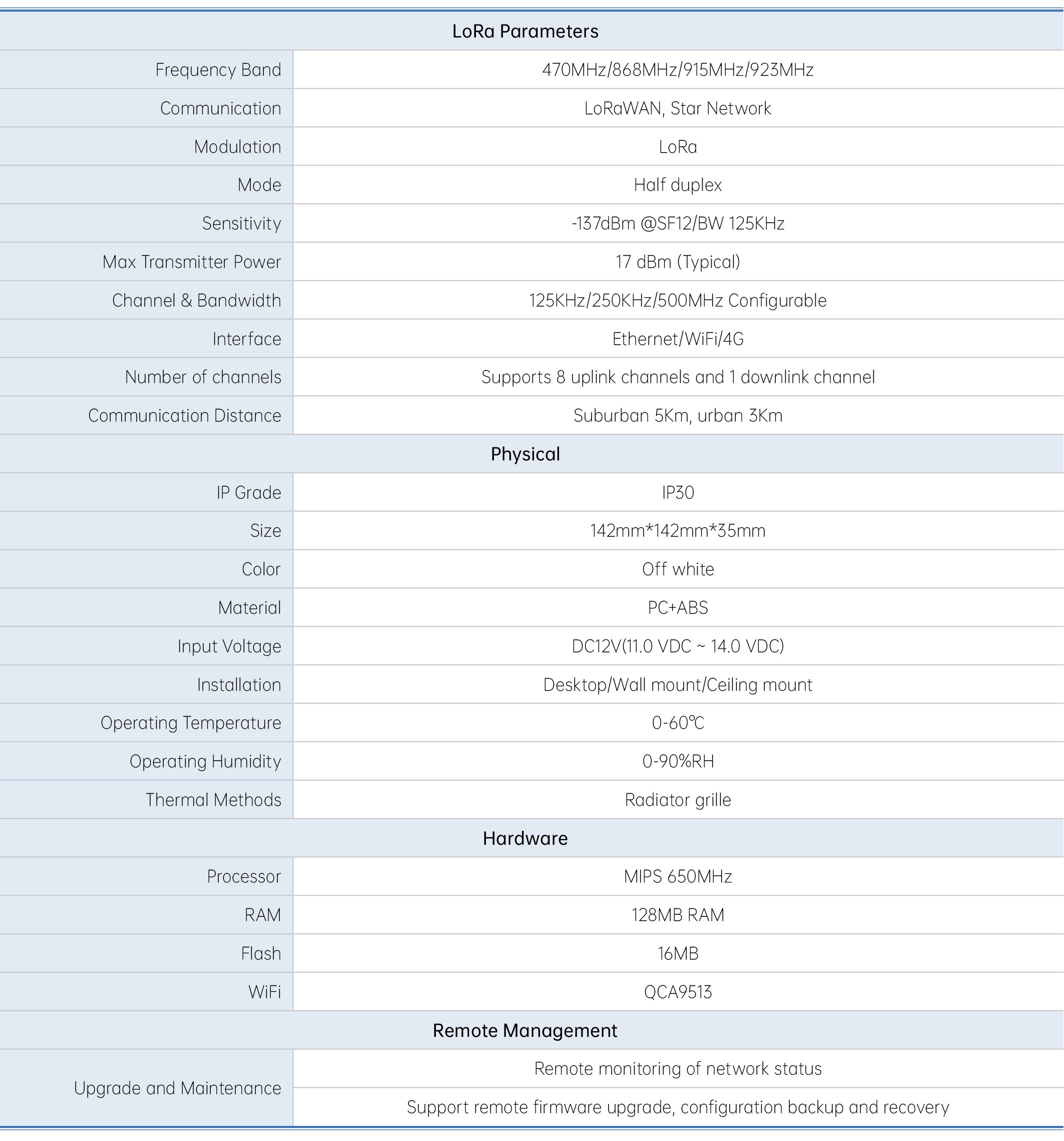

Technical parameters
